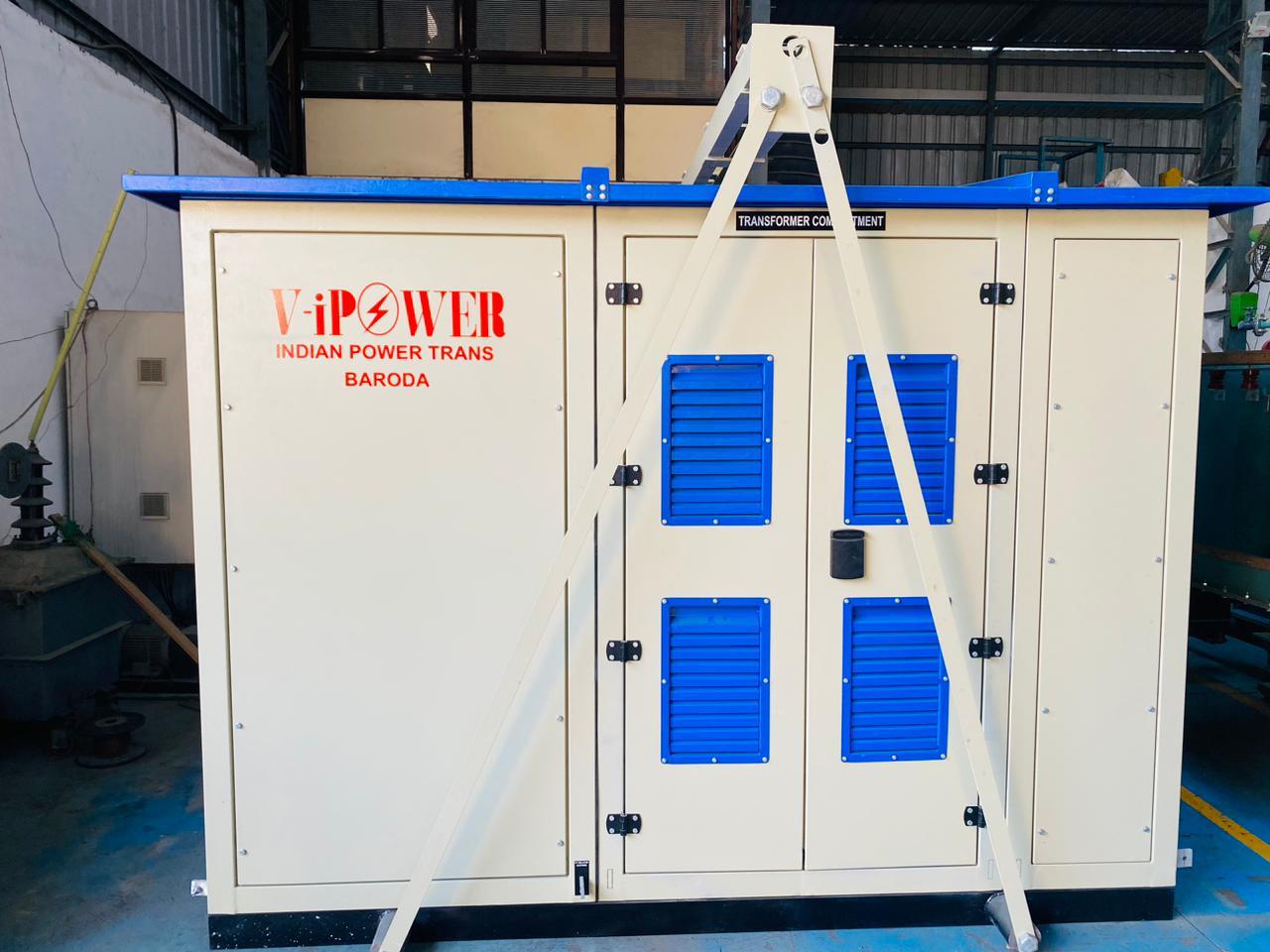

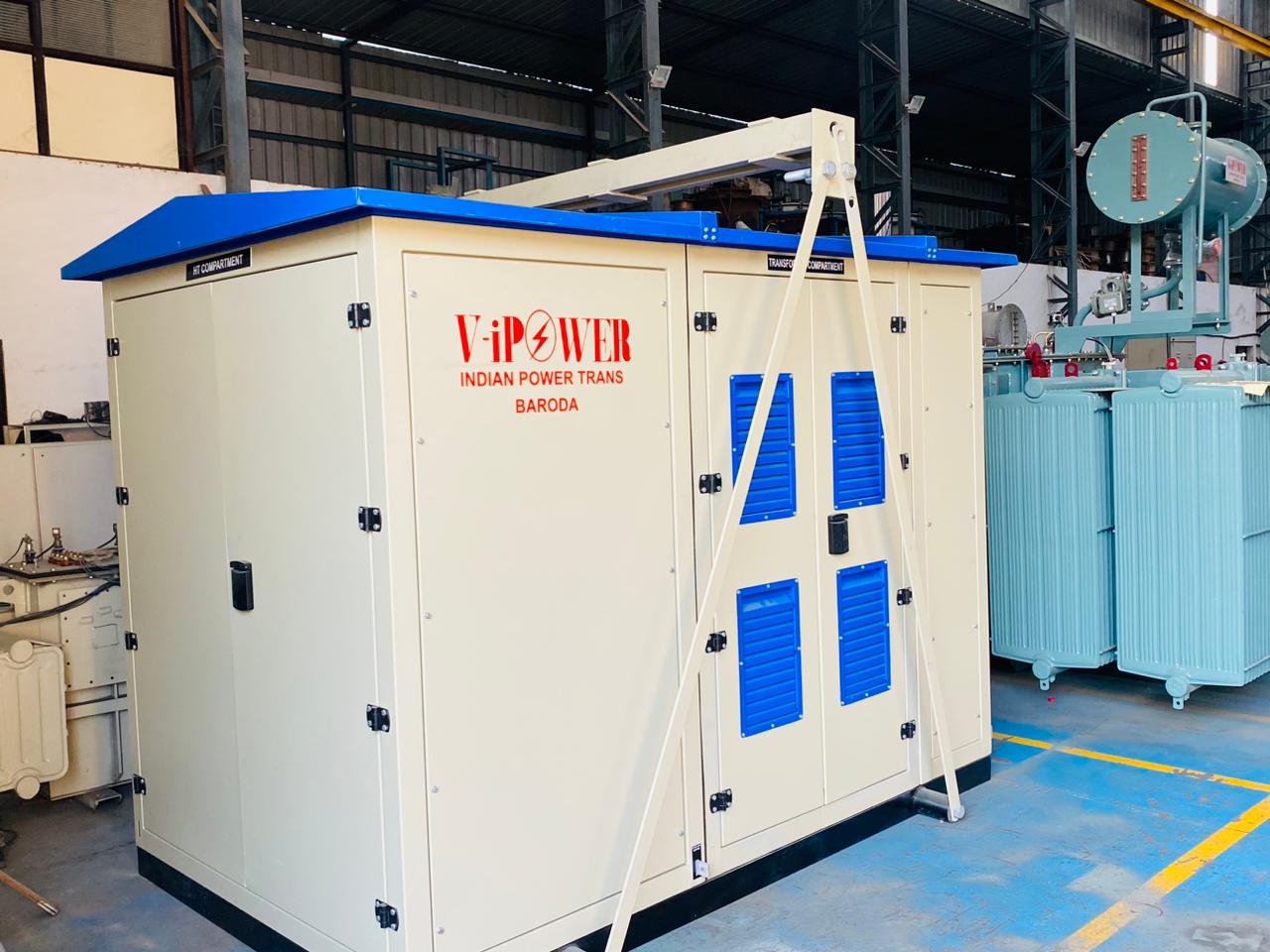

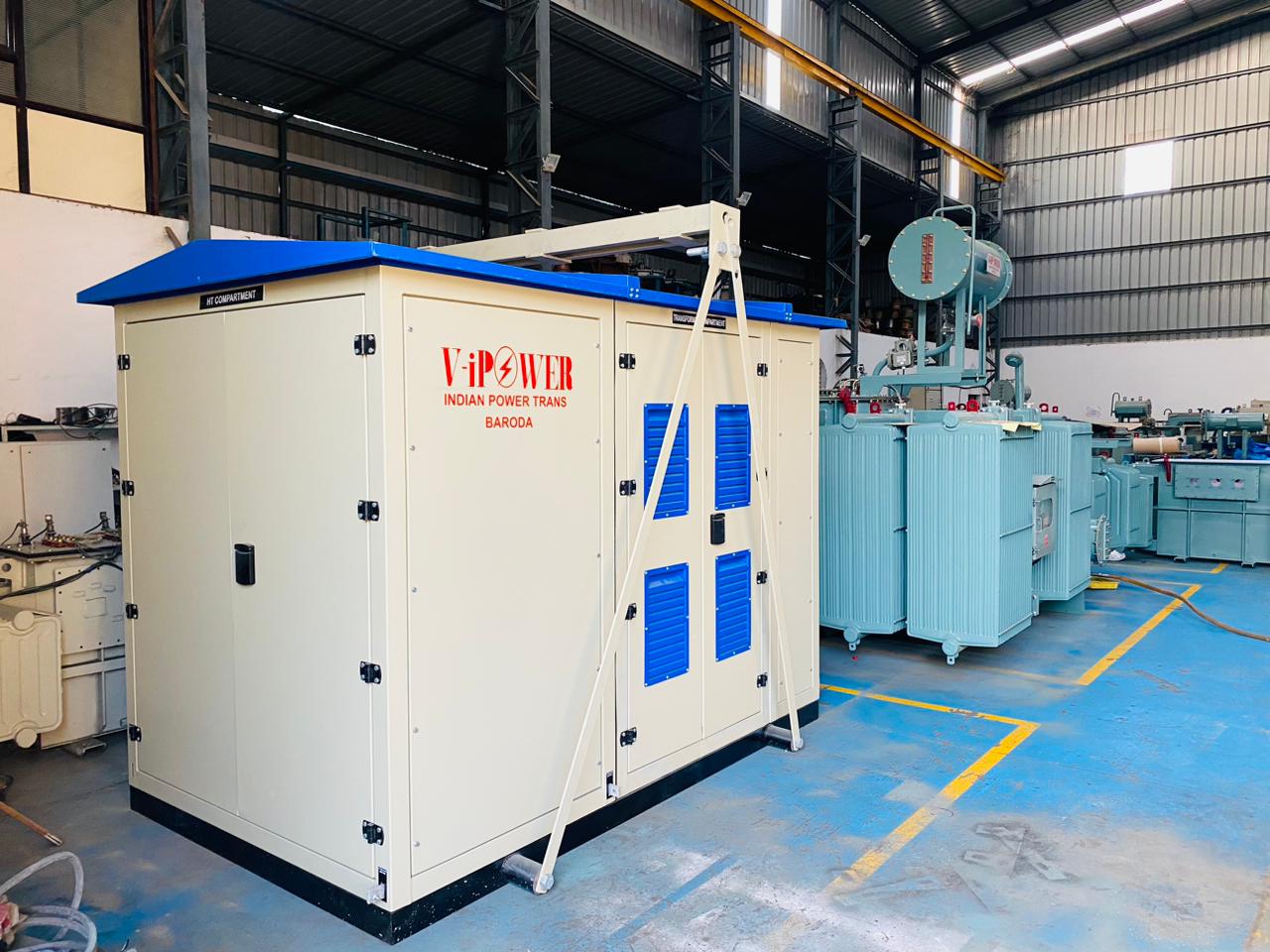

Compact Sub Station
A compact substation is a ready-to-install product and saves on space, time and cost of a complete project. CSS is a type tested and arc tested assembly comprising an enclosure containing medium voltage (MV) switchgear, distribution transformers, low voltage (LV) switchboards, connections and auxiliary equipment to supply low voltage energy from medium voltage systems. These substations are typically installed in locations accessible to the public and ensure protection for all people according to specified service conditions. CSS is used for energy transformation in secondary distribution network from MV to LV or LV to MV:CSS is for energy transformation in secondary distribution network from MV to LV or LV to MV systems.
CSS consist of all the necessary equipment such as VCB, DRY TYPE TRANSFORMER, LBS, RMU, PROTECTIVE RELAYS, etc. Thus CSS is all in one compact substation which has all the necessary devices. This CSS is easily transferable and can be taken into work within a limited period of time. All you have to do is to give H.V side and L.V side connections and your CSS is ready for use which is safe and reliable. This transformer can be installed in various industries such as Casting industries, Textile industries, Residential areas, Solar farms, Wind farms, etc. We manufacture a wide range of Compact Substation. The standard range is 250 KVA to 5000 KVA. 3.3, 6.6, 11, 22 & 33 KV voltages class.
Dry type or vacuum impregnated transformer.
COMPACT SECONDARY SUBSTATIONS (CSS)
All CSS components shall be type and routine tested per their relevant product standards
Reduction in installation space, cost & time Type tested per latest IEC standard 62271-202
High level of safety for personnel & equipment due to the highest degree of Internal Arc Classification.
Wide range of ratings & capacities as well as
layouts in steel, concrete and innovative GRPhousing.
Global leader with huge installed base, global service coverage and high level of engineeringcapabilities.
