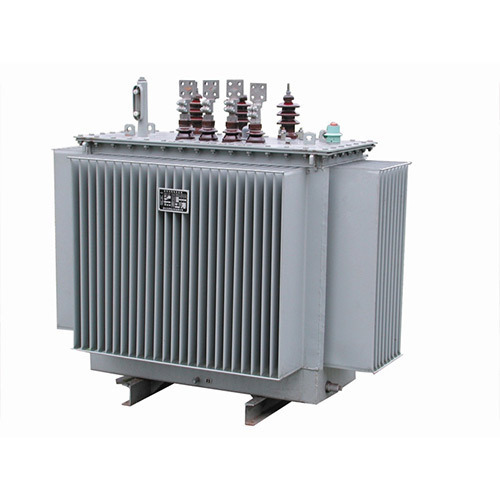

A distribution transformer is a transformer that provides the final voltage transformation in the electric power distribution systerm, stepping down the voltage used the voltage used in the distribution lines to the used by the customers
Kva Rating, 10 KVA to 5 MVA
3 phase, 50 Hz in voltages of 11kV, 22kV and 33kV
Off-circuit tap changer to provide in taps in steps of 2.5%
On-load tap changer to provide in steps off 1.25%
Class Ainsulated
All Vector group
Continuous duty
Winding Material : Copper and Aluminum
Painting as per IS/IEC standards
Both HV & LV side outdoor bushings/ cable box/ bus ducts / bus bar risers
Standard fittings as per IS 2026/IEC 76

Pressure relief valve without contact/with contact
Buchholz relay with alarm and trip contact
Oil temperature indicator with alarm and trip contact
Winding temperature indicator with alarm and trip contact
Magnetic oil level gauge with alarm contact
Marshalling box to house oil temperature indicator and
winding temperature indicator
Neutral current transformer
