Specifications

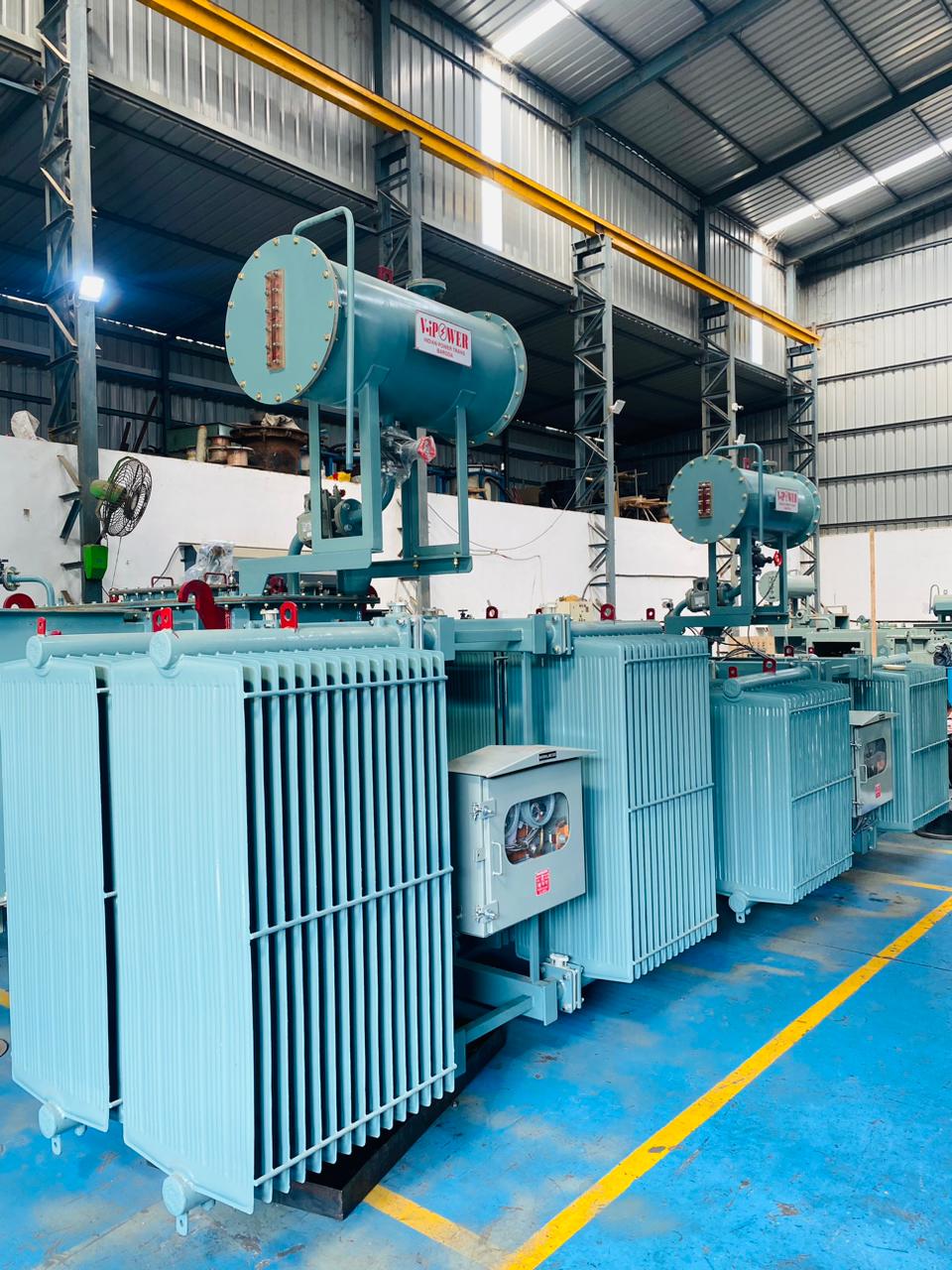

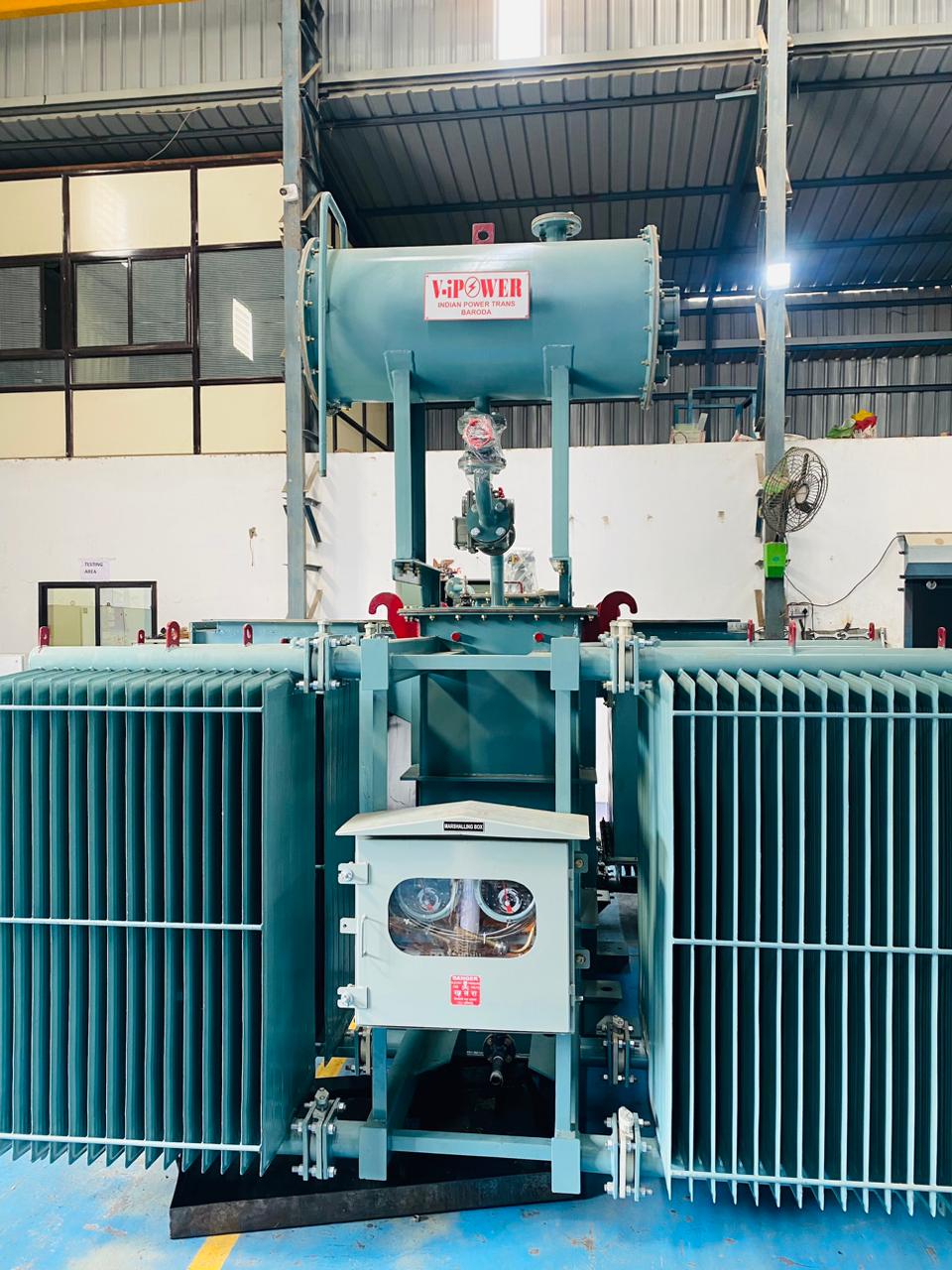

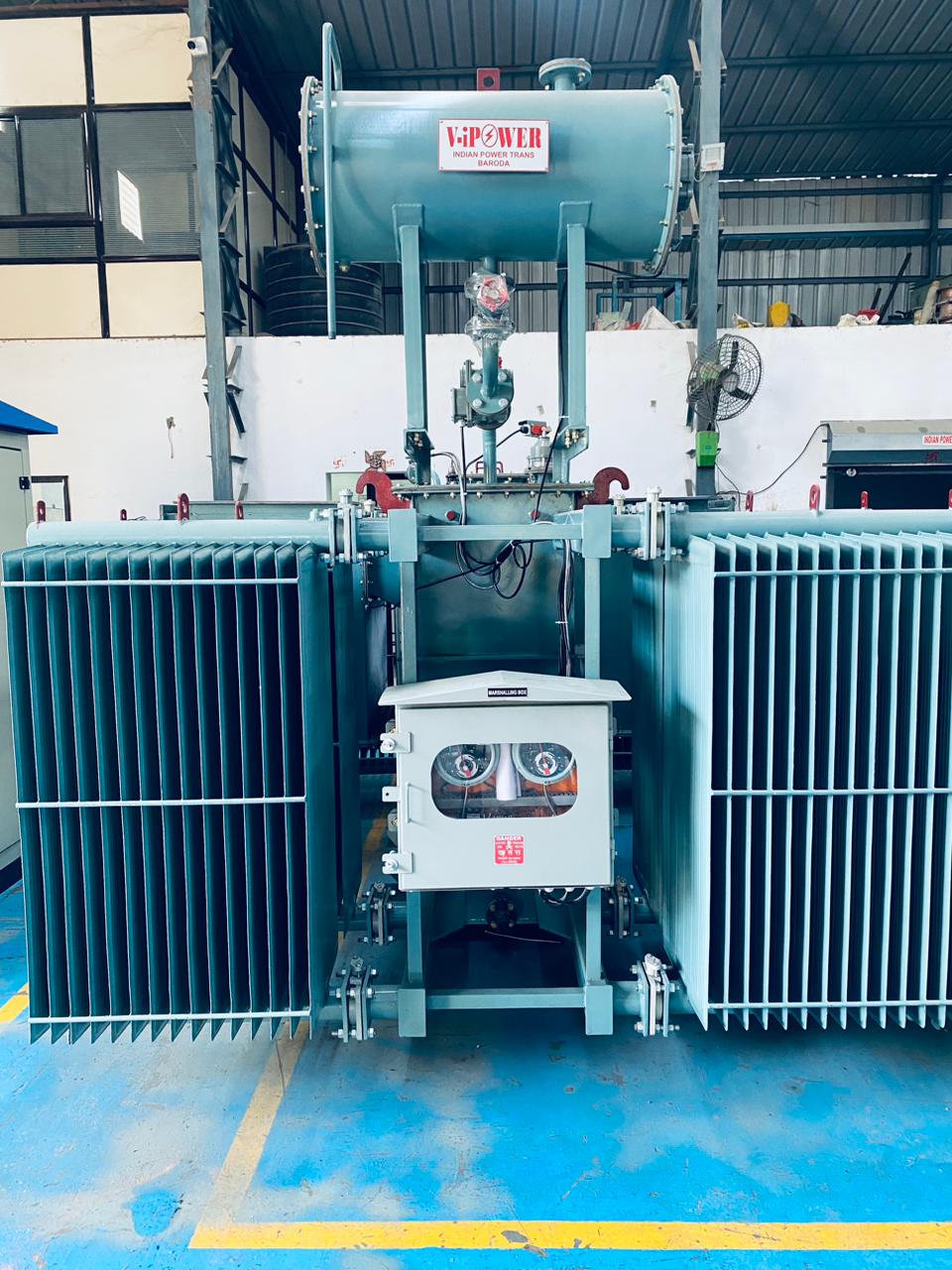

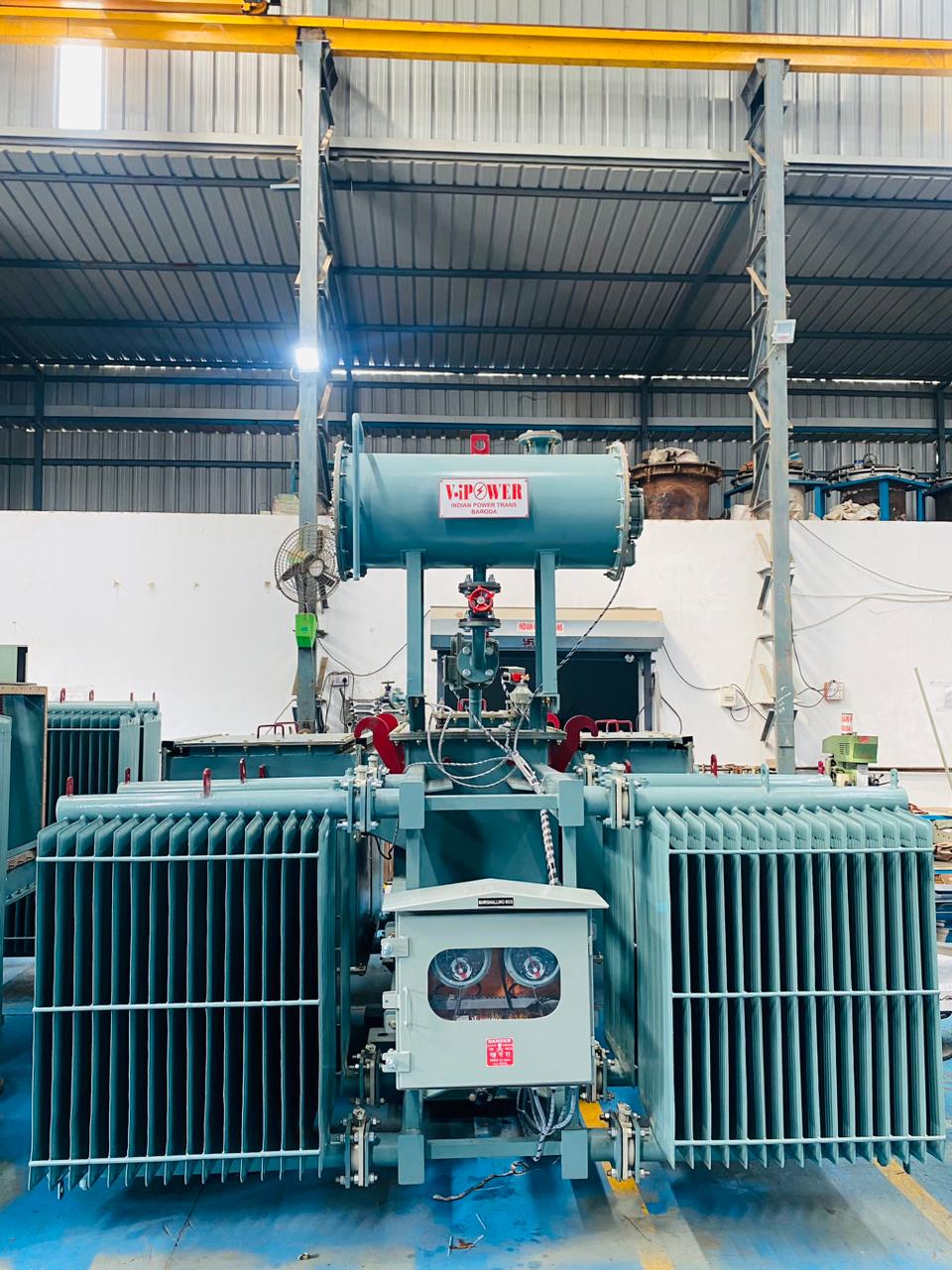

Solar/Wind transformer is meant for converting the low voltage into high voltage and fed into a power grid. Thus this transformer is also known as Convertor Duty or Inverter Duty transformer.
i class="fas fa-angle-double-right"> The transformer is designed in such a way that it can resist Harmonic currents caused by rectifier/inverter. Also, a Copper static shield is provided earthen separately to resist radio frequent disturbance. For such transformers, the design is done with multiple winding, for example, three winding or four winding transformers which make 6 pulses and 12 pulses transformer.
i class="fas fa-angle-double-right">Maintaining proper mechanical and electrical properties is the crucial part of designing such transformer ensuring good performance with the safety of all the electrical equipment.
Both HV & LV side outdoor bushings/ cable box/ bus ducts / bus bar risers
Features
Copper Static shield provided between primary and secondary to protect transformer against disturbance.
We take reduced current density to protect transformer from overheating due to harmonic current and thus limits the transformer loss.
We take flux density lower to decrease core loss due to harmonic interference from inverters and thyristors.
